Revelate Designs Hammerhead Harness – for demanding bikepacking

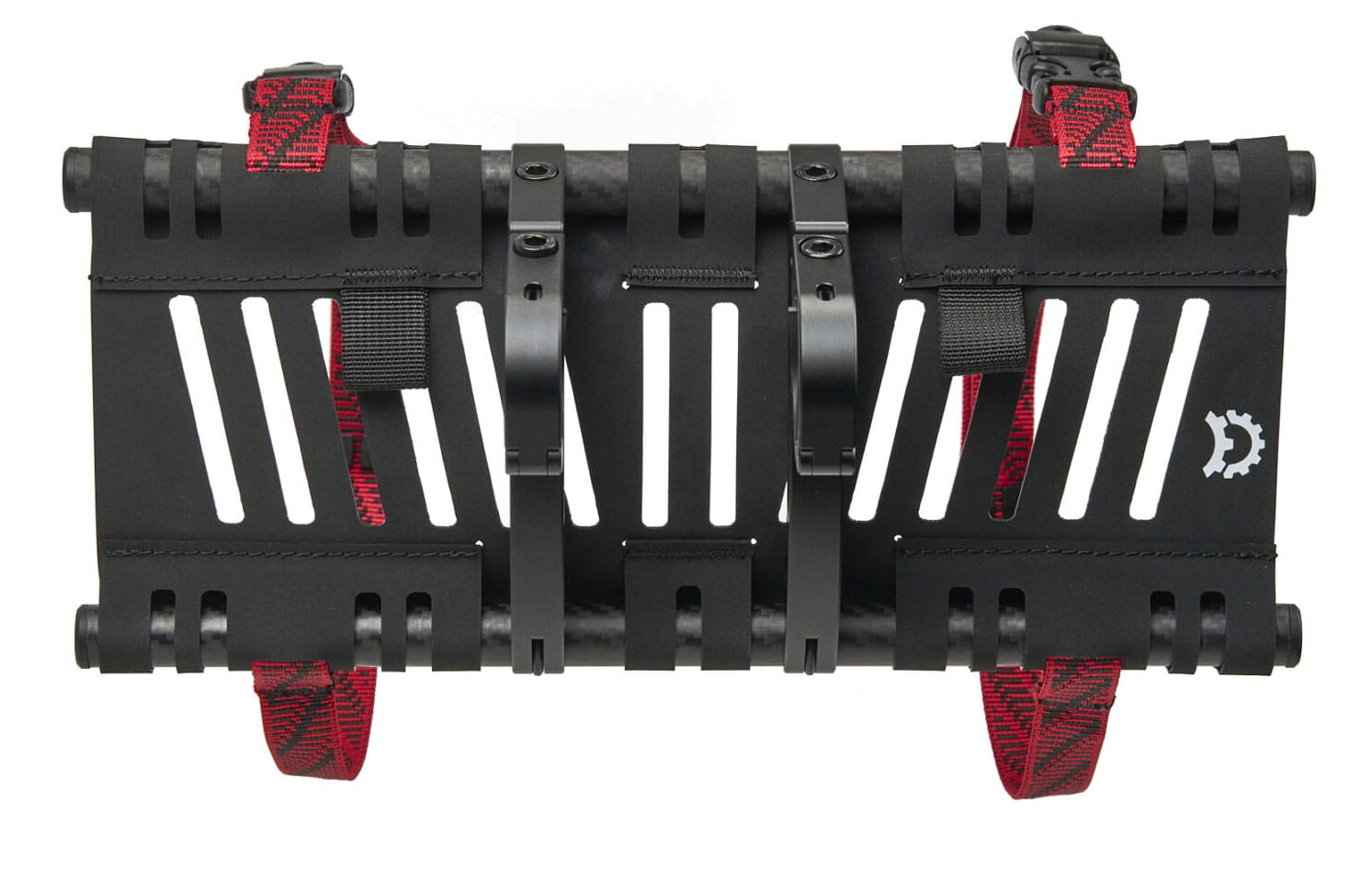

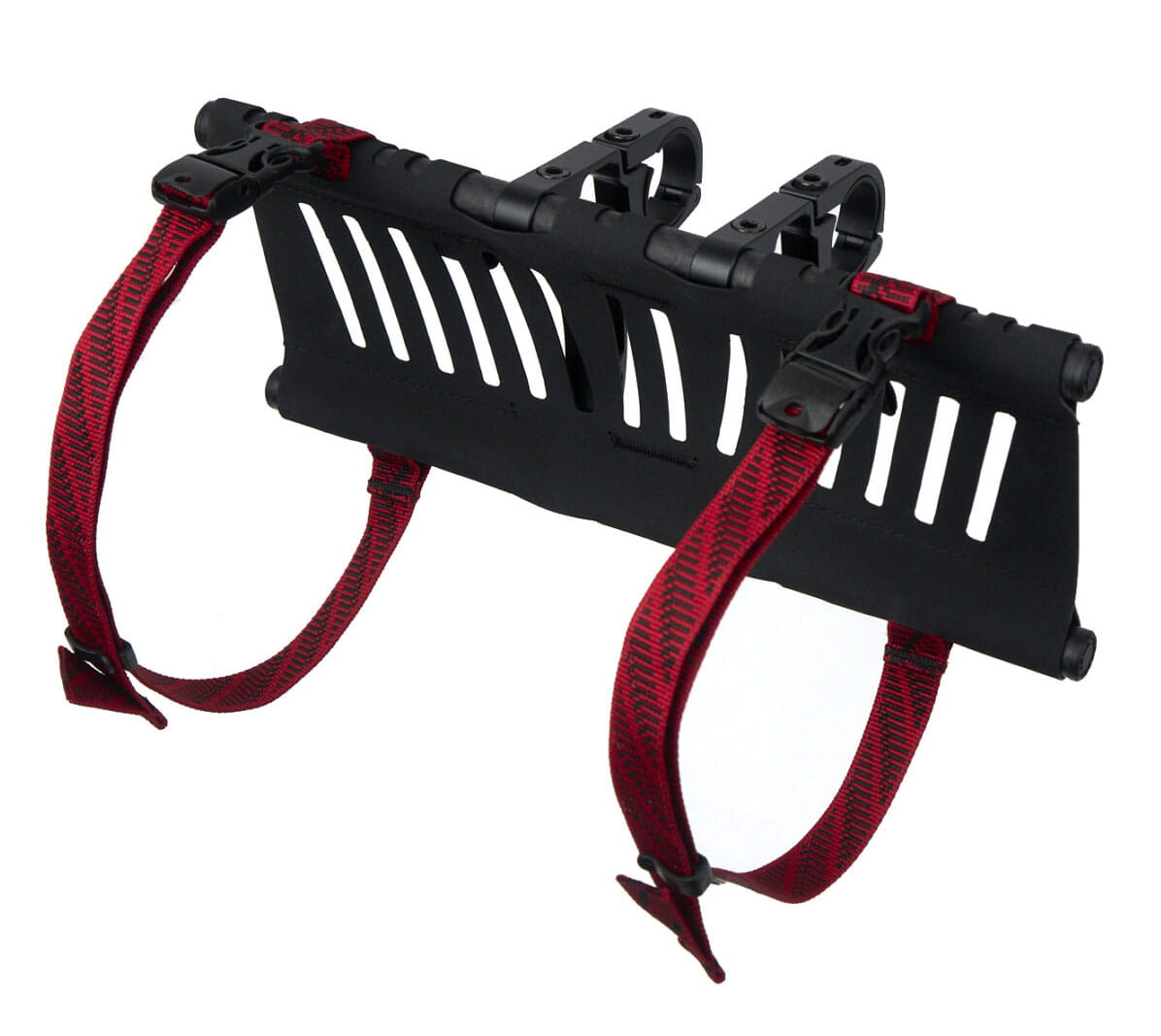

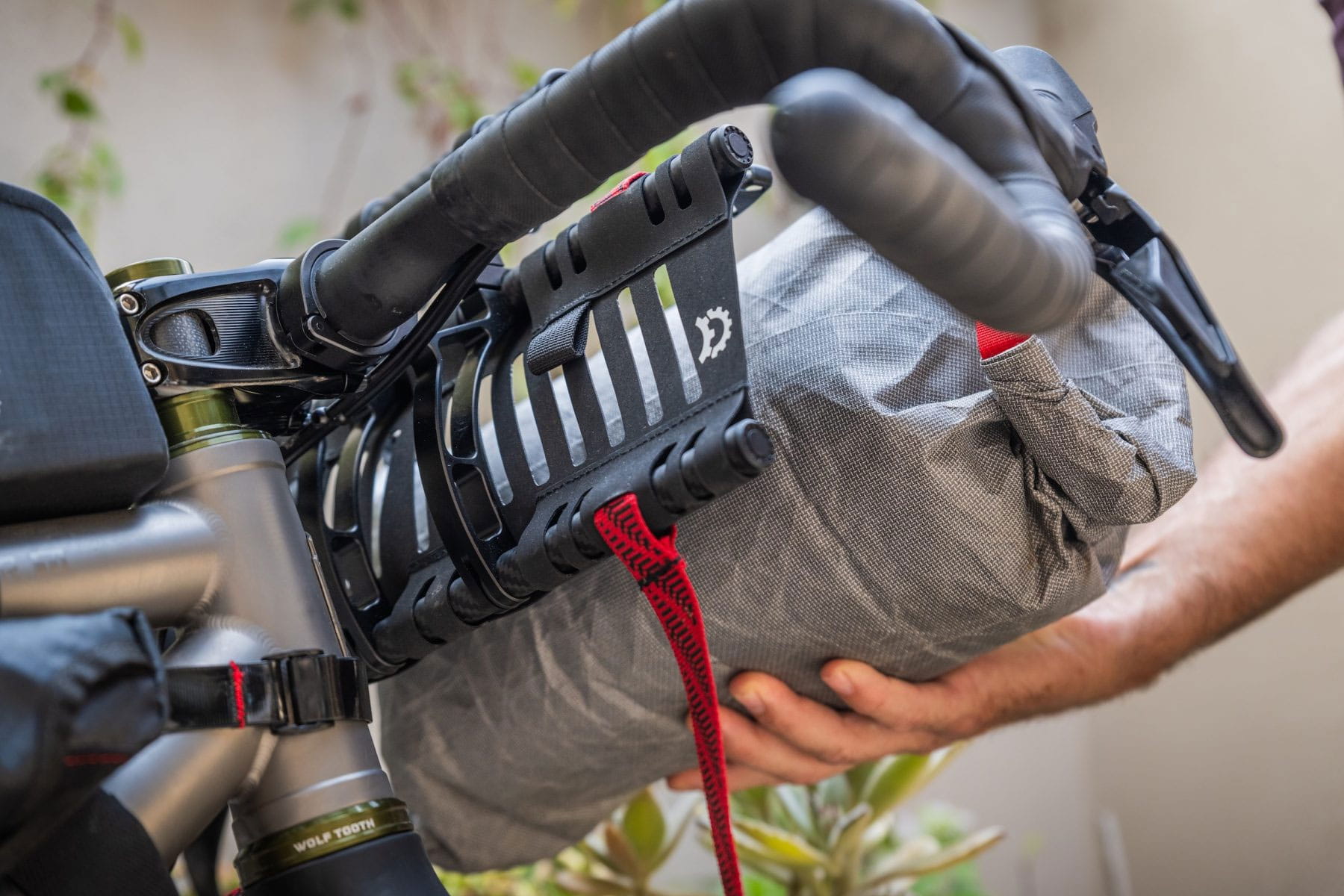

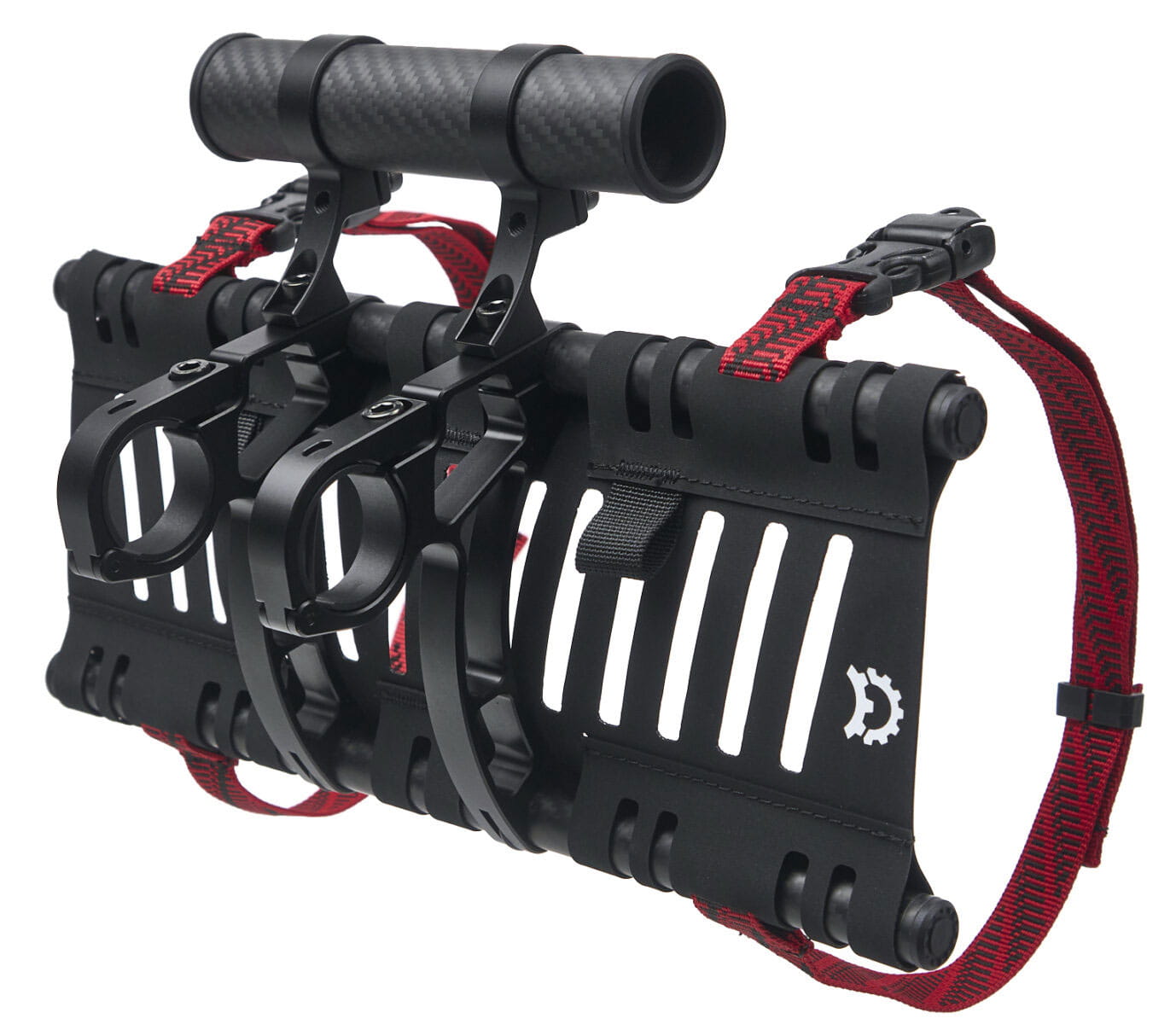

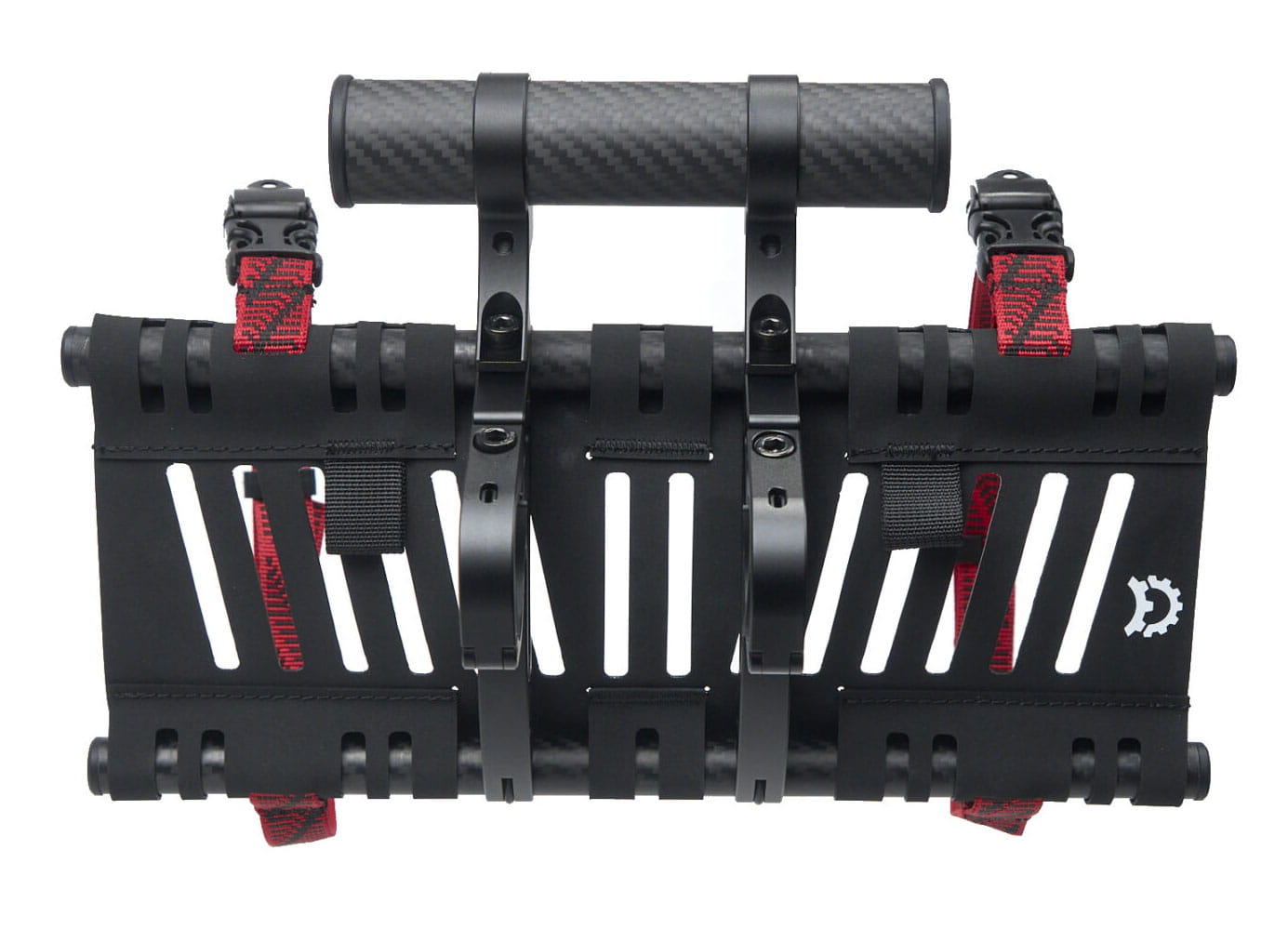

The Revelate Designs Hammerhead Harness is a highly stable, rigidly mounted handlebar carrier system designed to securely position luggage in front of the handlebars with minimal vibration. The combination of CNC-machined aluminum clamps and carbon support tubes creates an extremely durable platform for dry bags and lightweight bikepacking gear.
Mounting Instructions

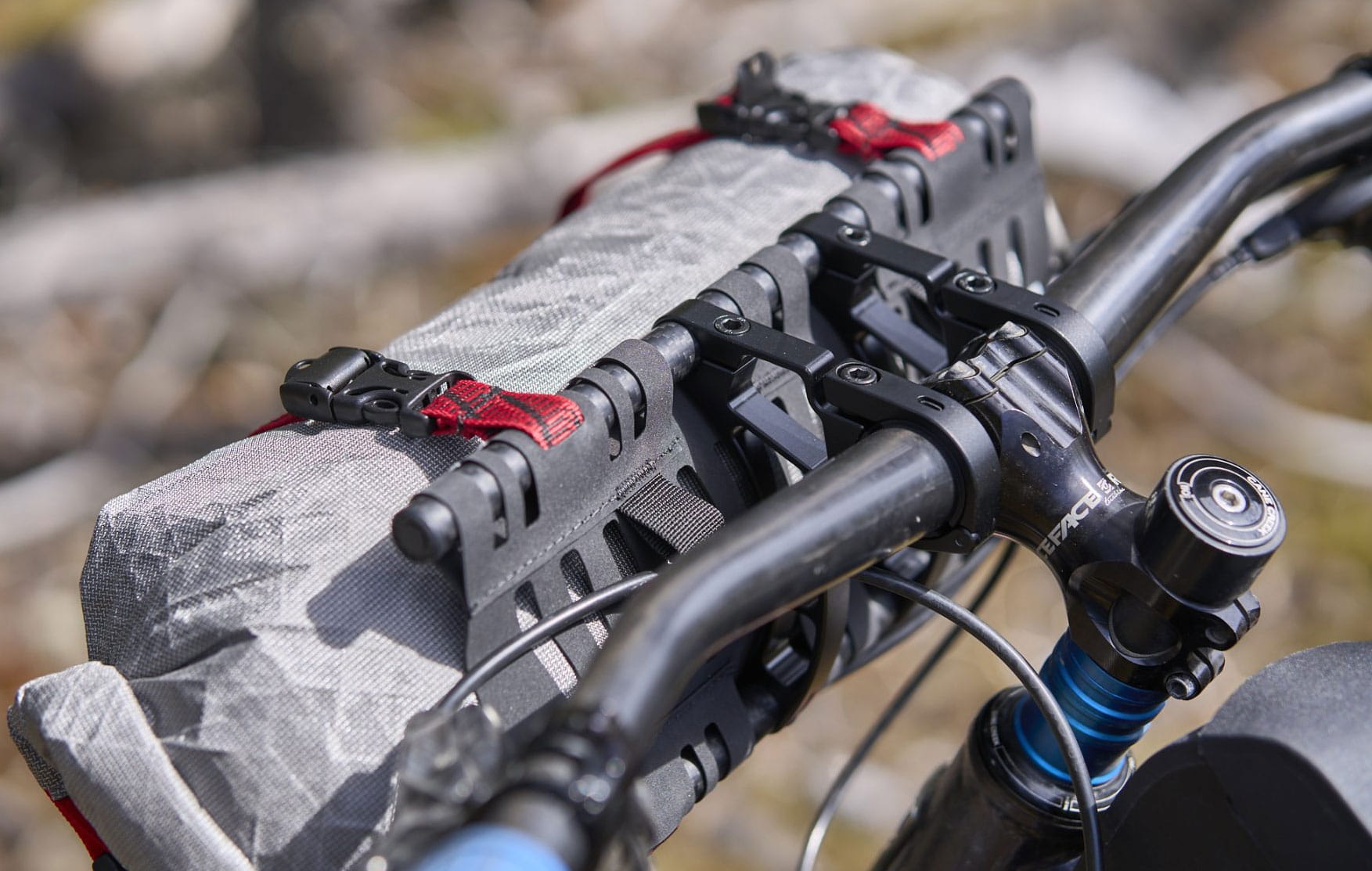

For safe installation, the clamps must be tightened to 3 Nm. Ensure that there is sufficient straight clamping surface on the stem (13 mm per side) and that the maximum load capacity of 3.6 kg is not exceeded.

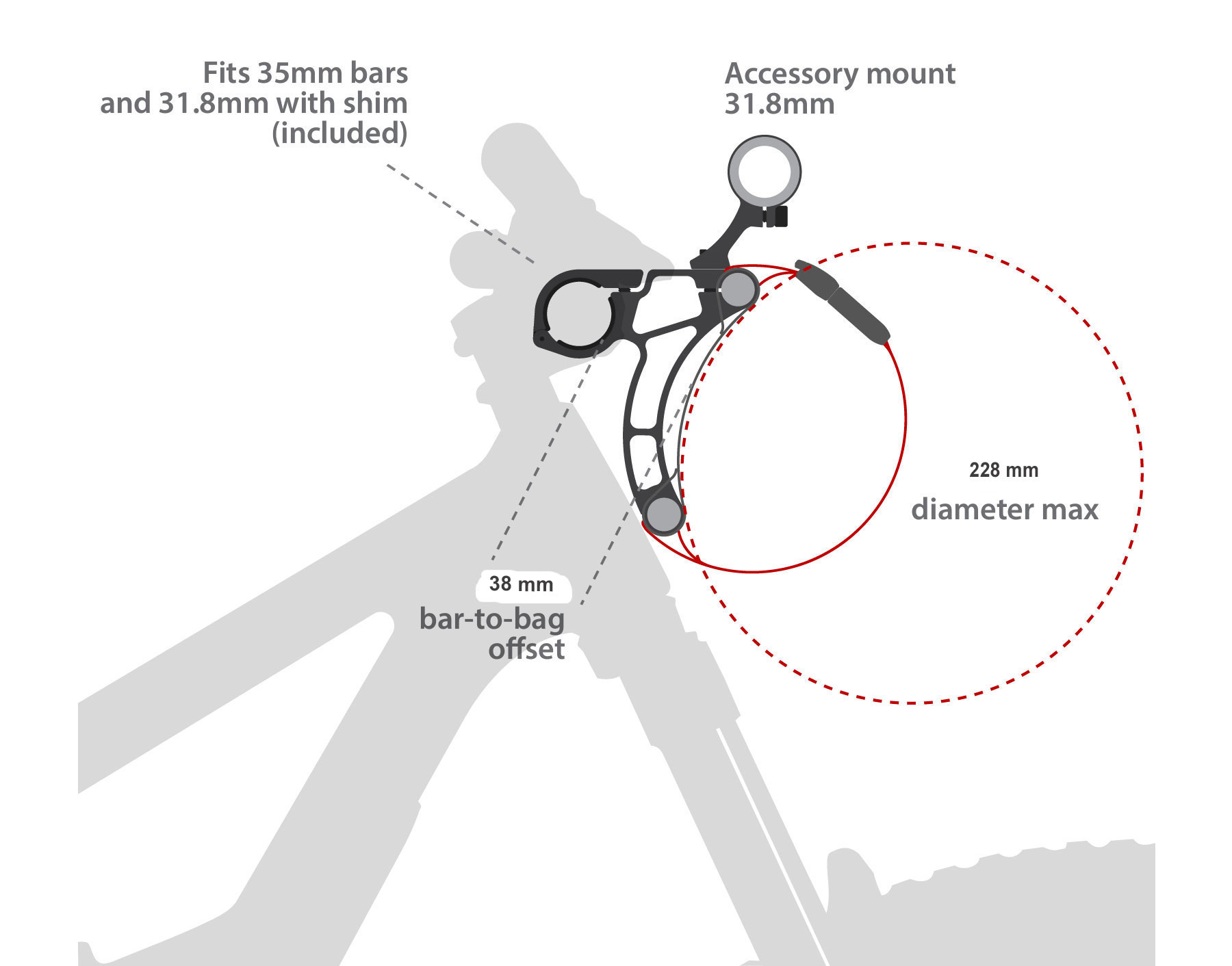

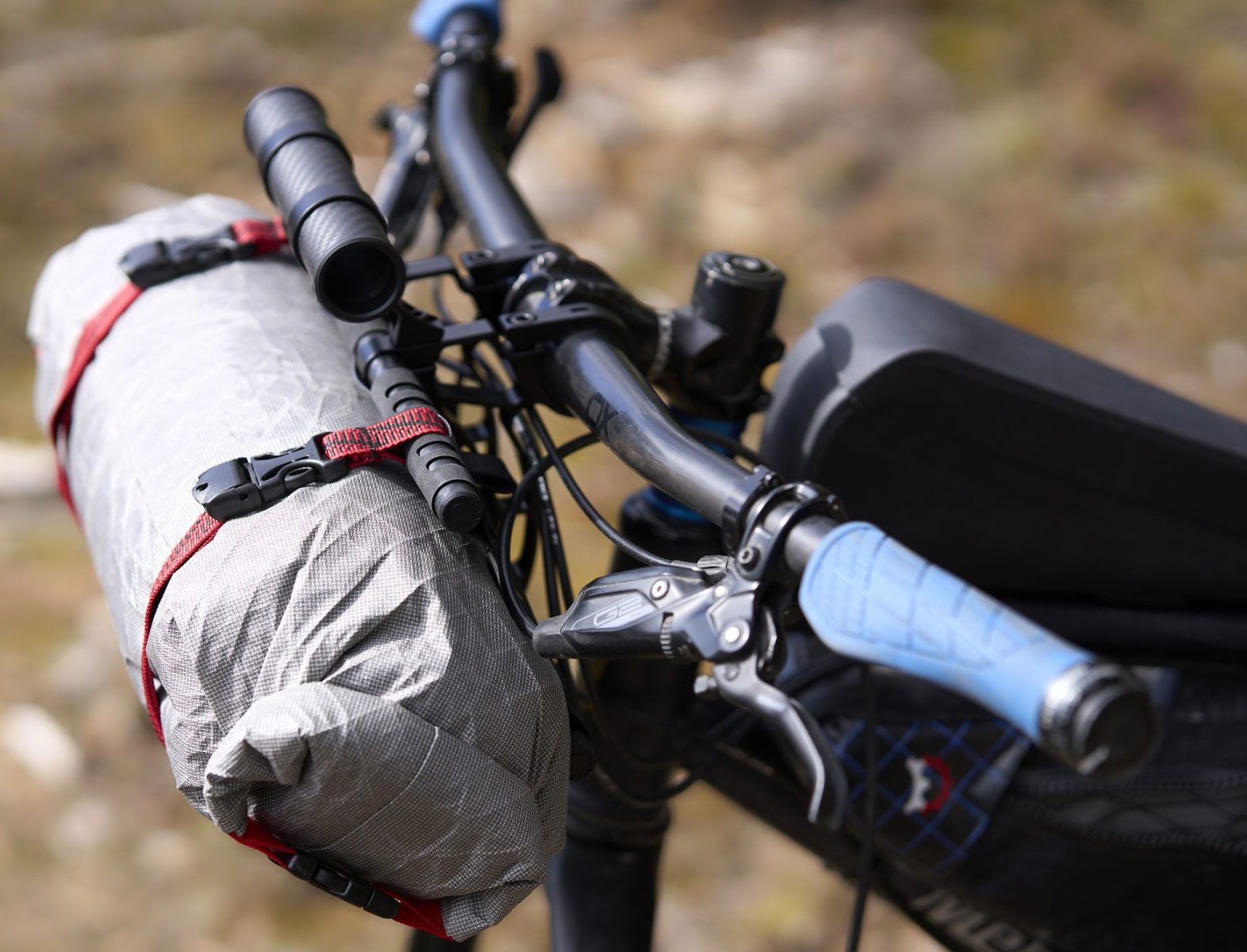

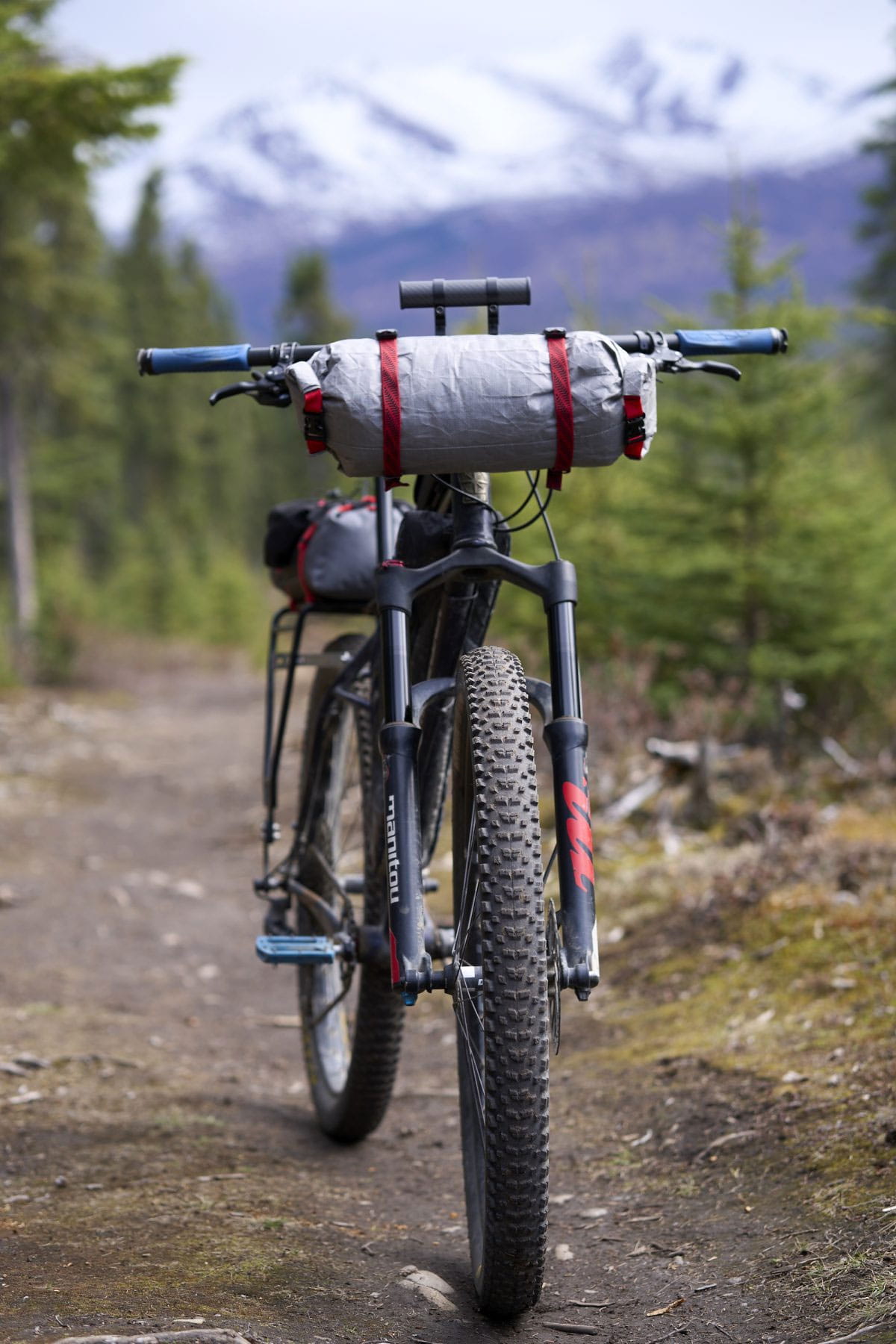

We recommend the Revelate Designs Saltyroll, but all other dry bags with a diameter of up to 228 mm can also be used.
Product Features:
- Maximum stability on the handlebars
- Lightweight with high rigidity

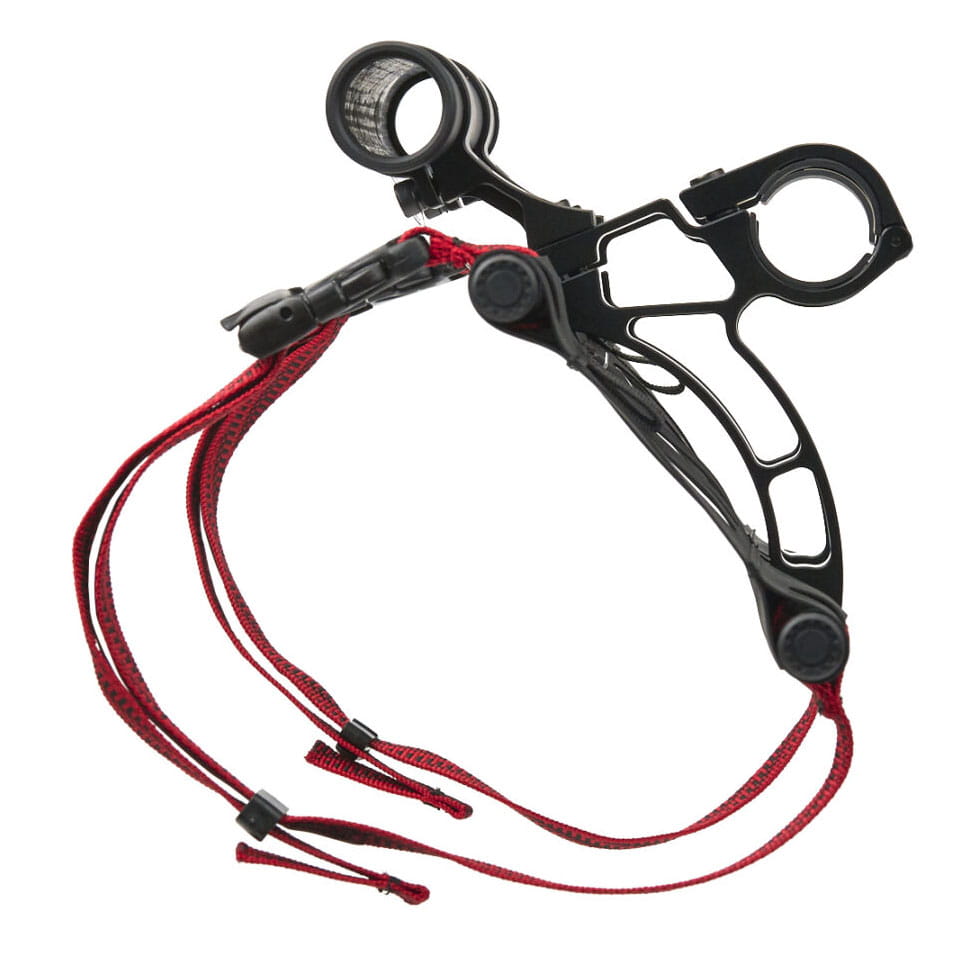

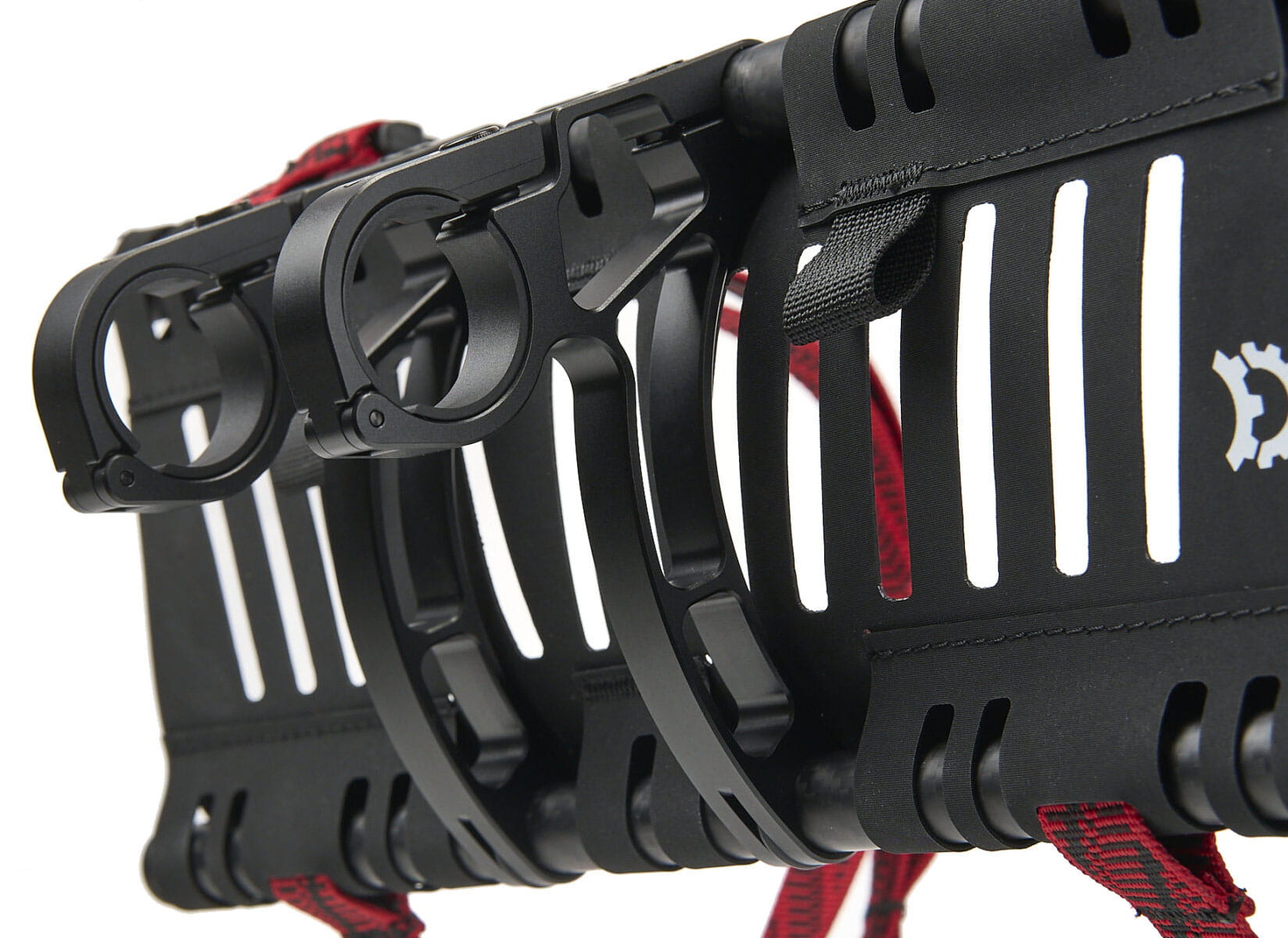

- Adjustable width thanks to hinged clamp mechanism

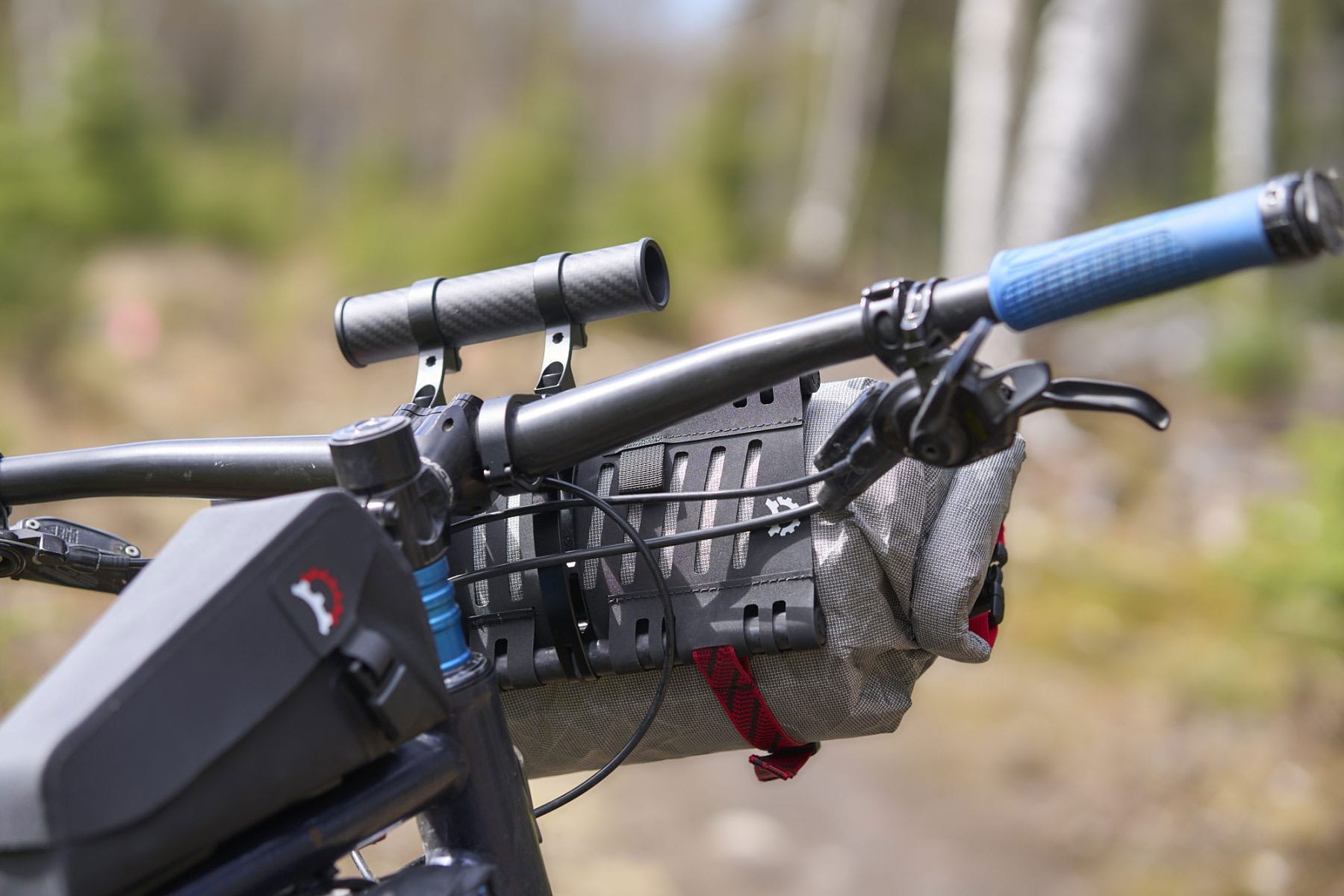

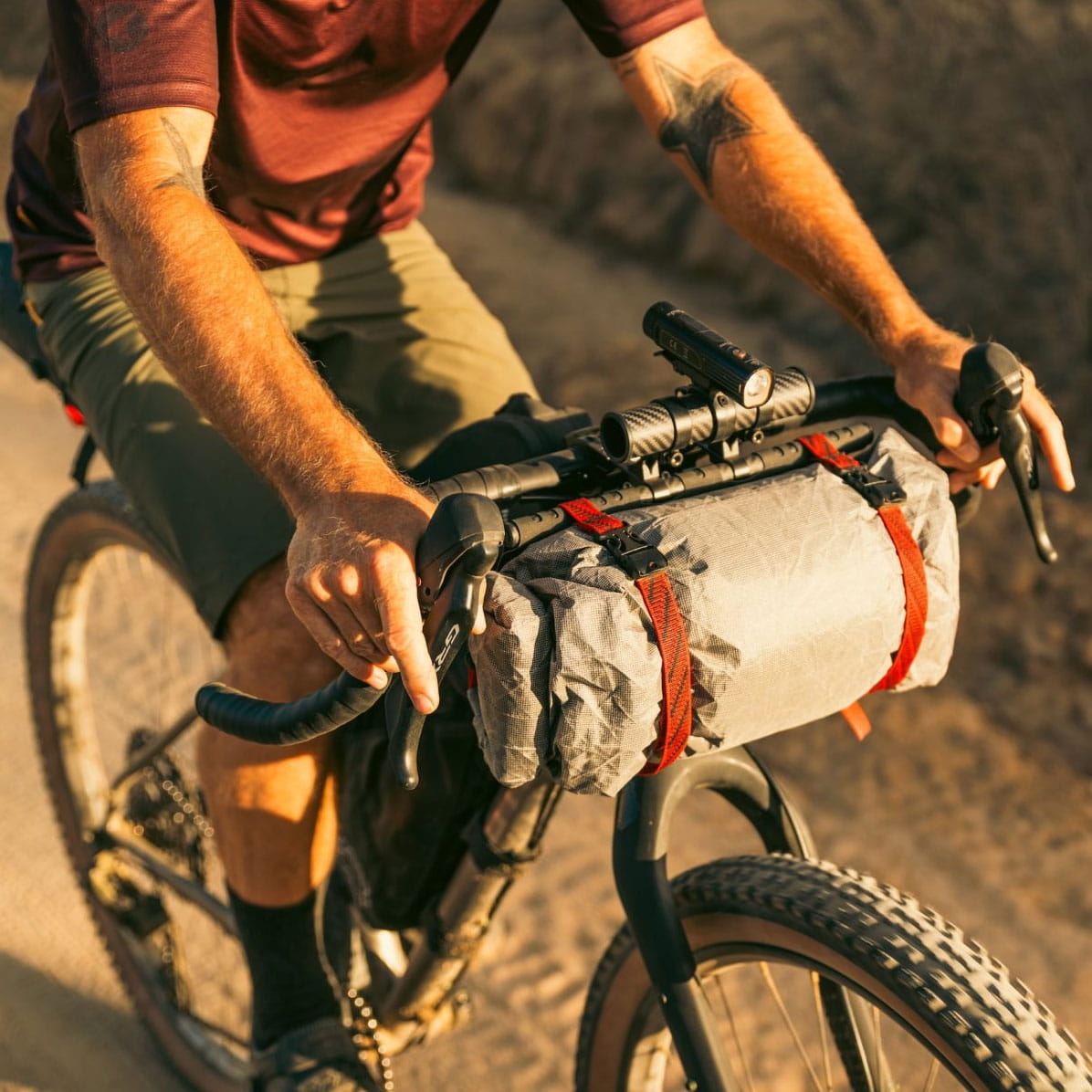

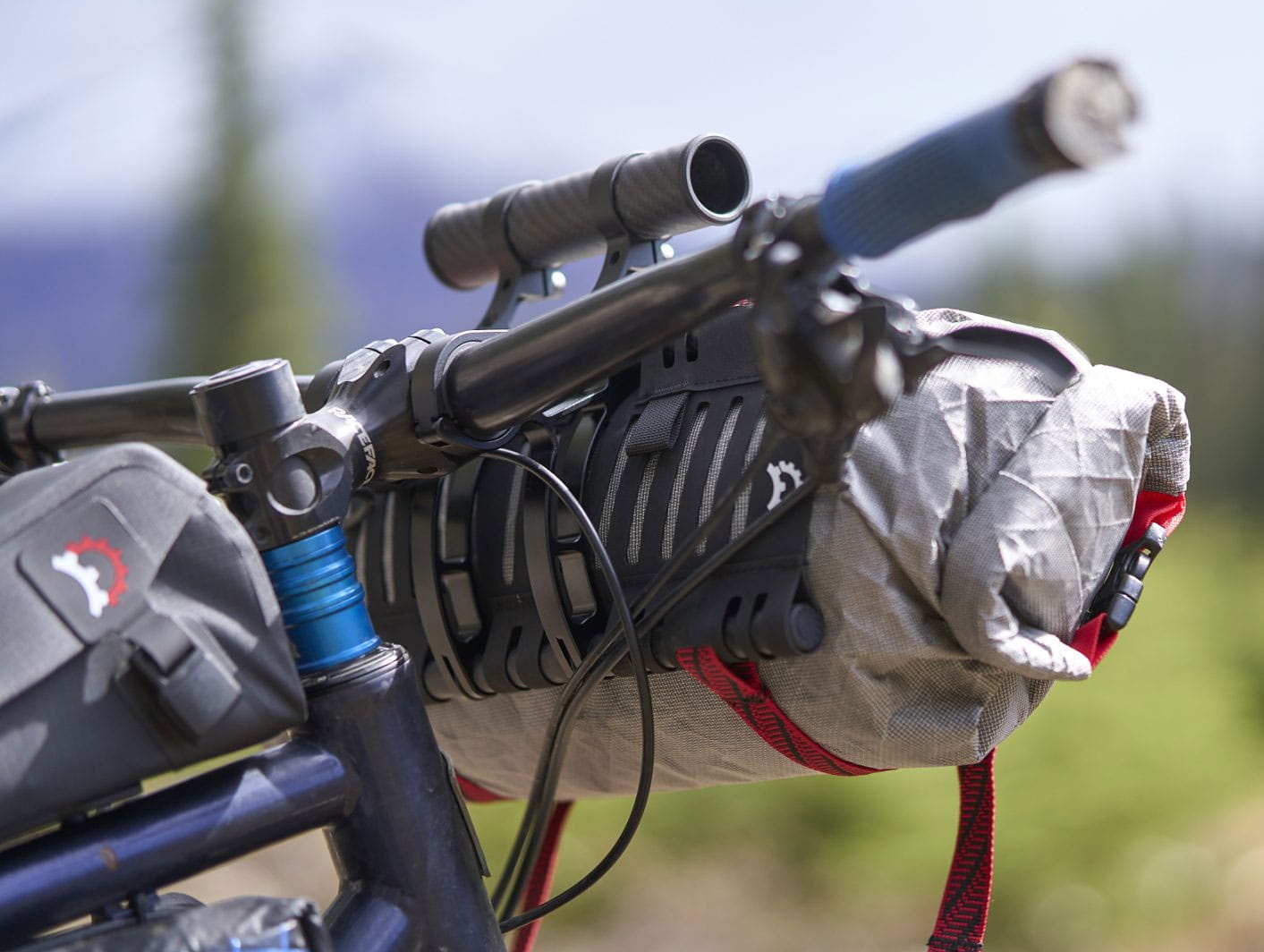

- Bar extender for lights and bike computer
- Hypalon sling protects sensitive gear
Technical Data:
- Weight: 410 g (with bar extender), 336 g (without bar extender)
- Handlebar compatibility: 31.8 mm and 35 mm

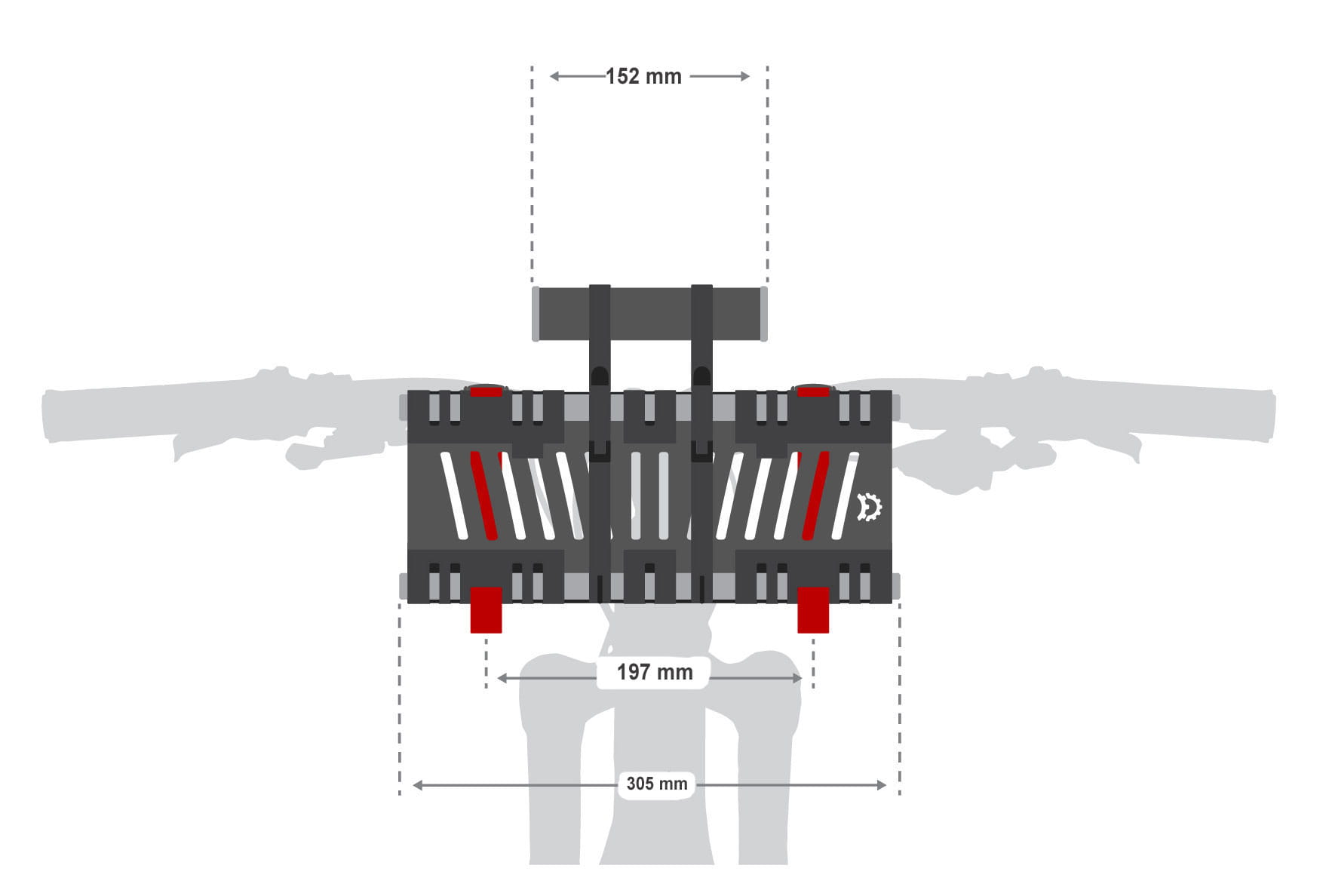

- Frame width: approx. 305 mm
- Light mount height: 76 mm from the top of the support strap to the top of the mounting tube
- Inner mount width: 80 mm
- Maximum load: approx. 3.6 kg
- Tightening torque: 3 Nm
Materials:

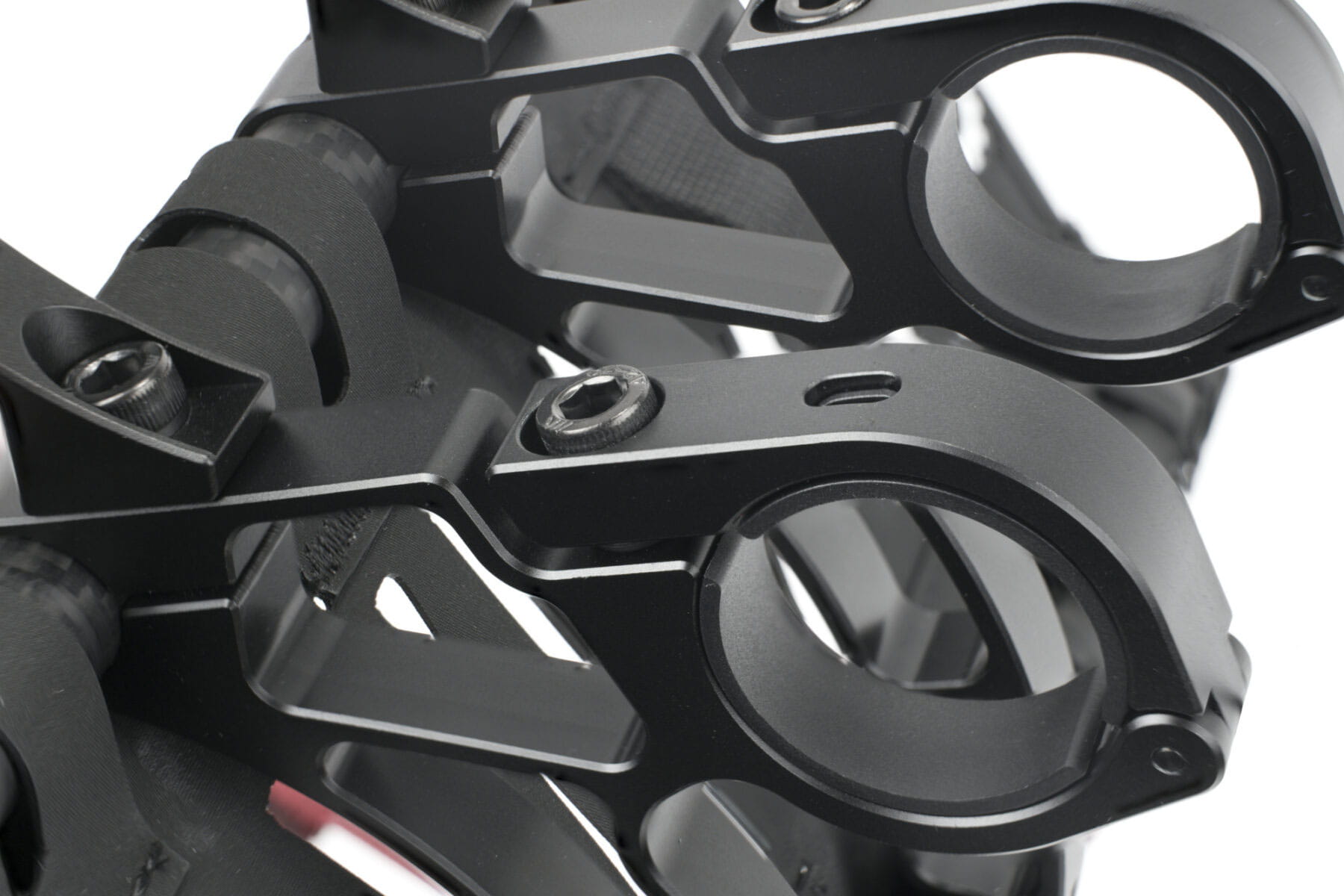

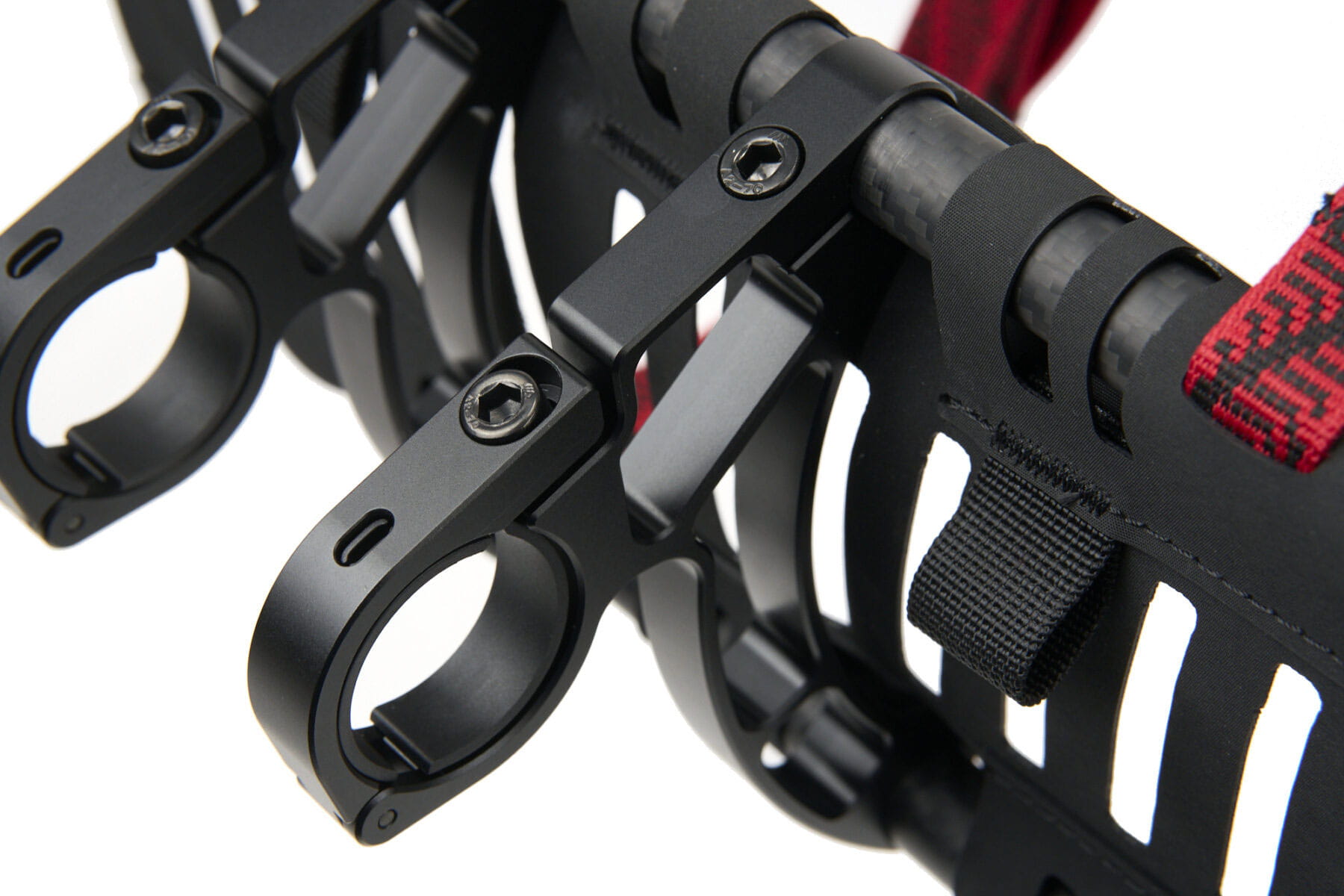

CNC-machined clamps and accessory risers made from 6061 aluminum, support tubes and accessory mounts made from carbon fiber, Hypalon carry strap

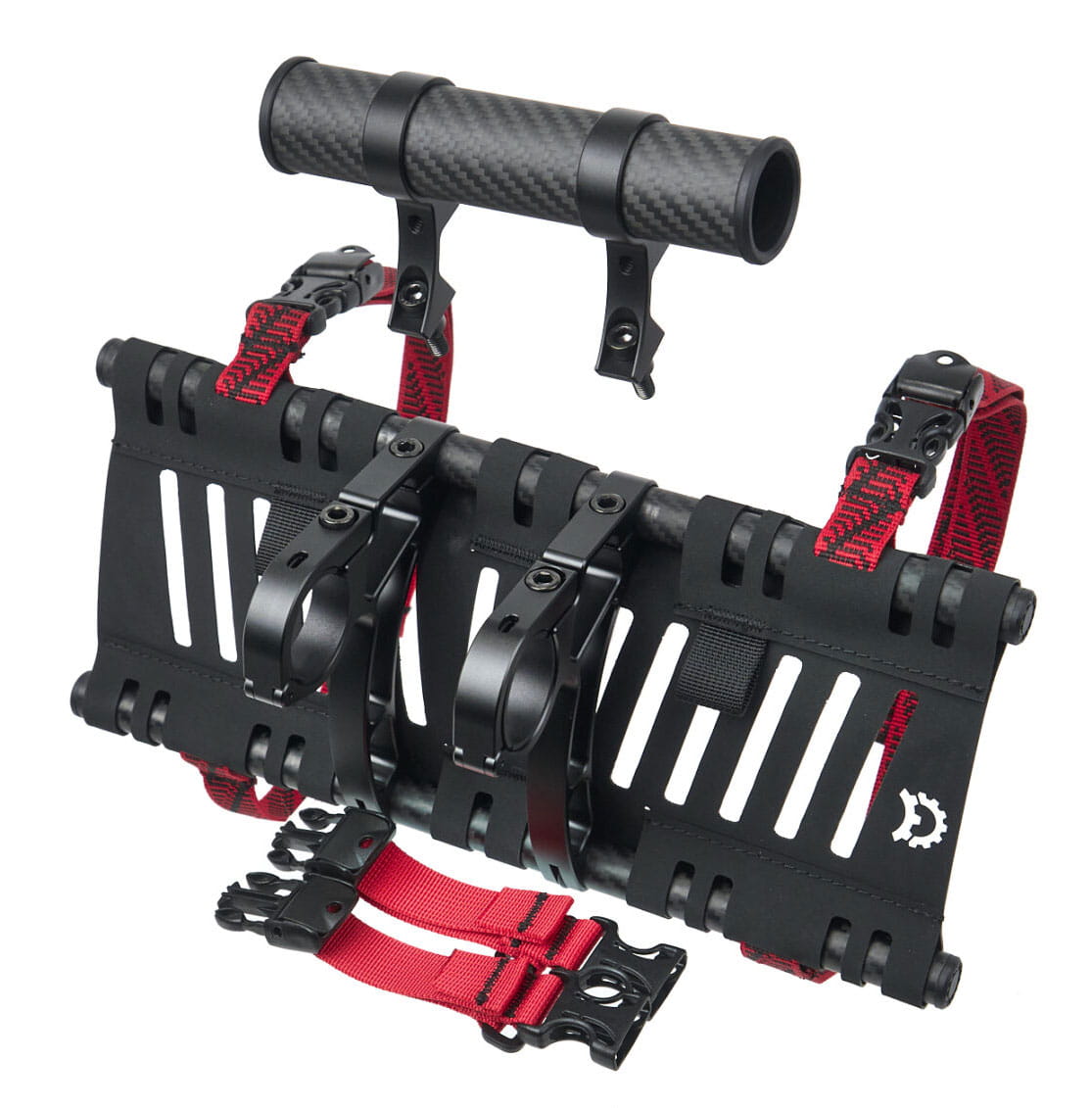

Scope of delivery:
- 1 x Revelate Designs Hammerhead Harness
- 1 x Bar extender
- 1 pair of straps for cargo securing
- 1 pair of pocket straps
