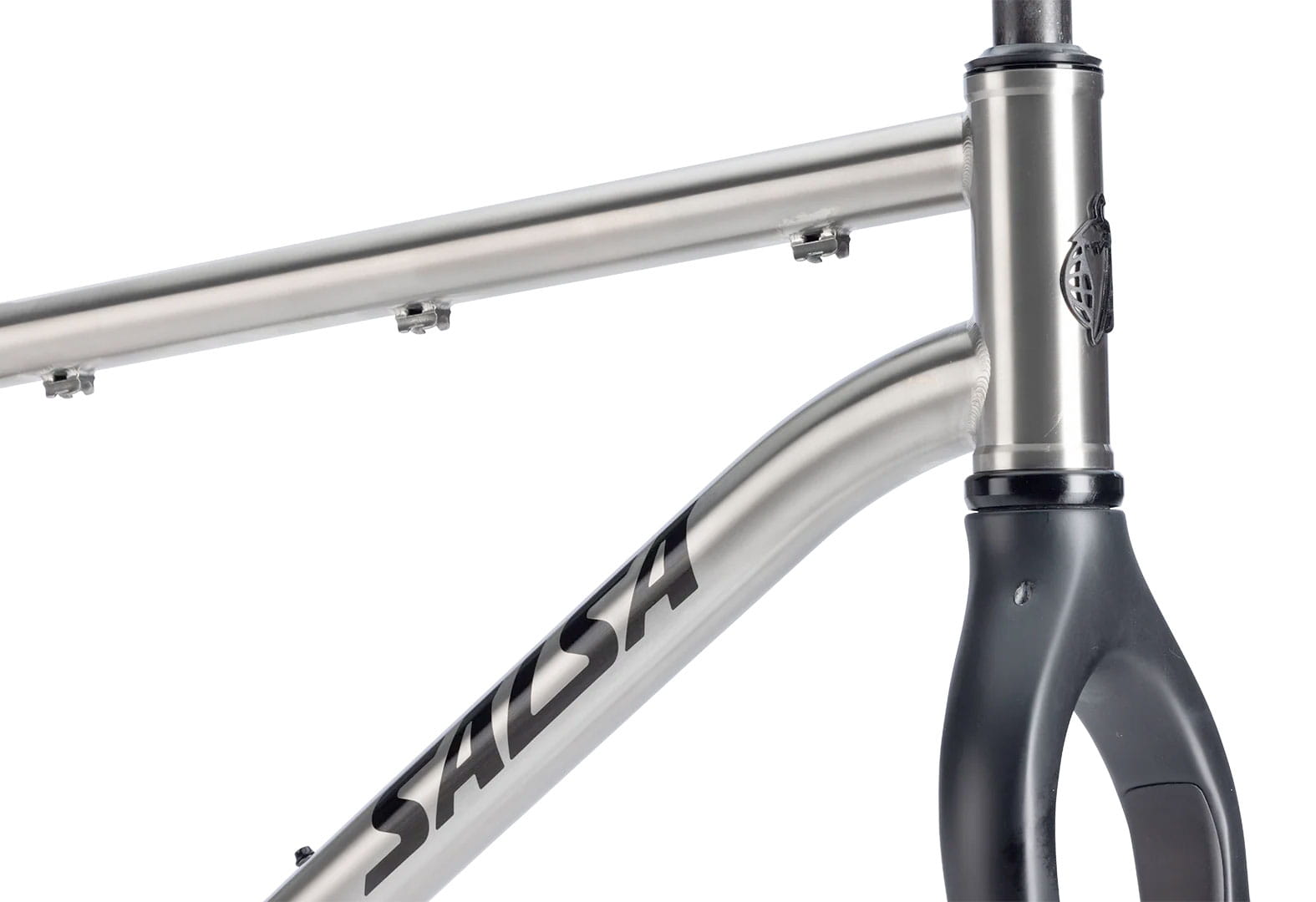

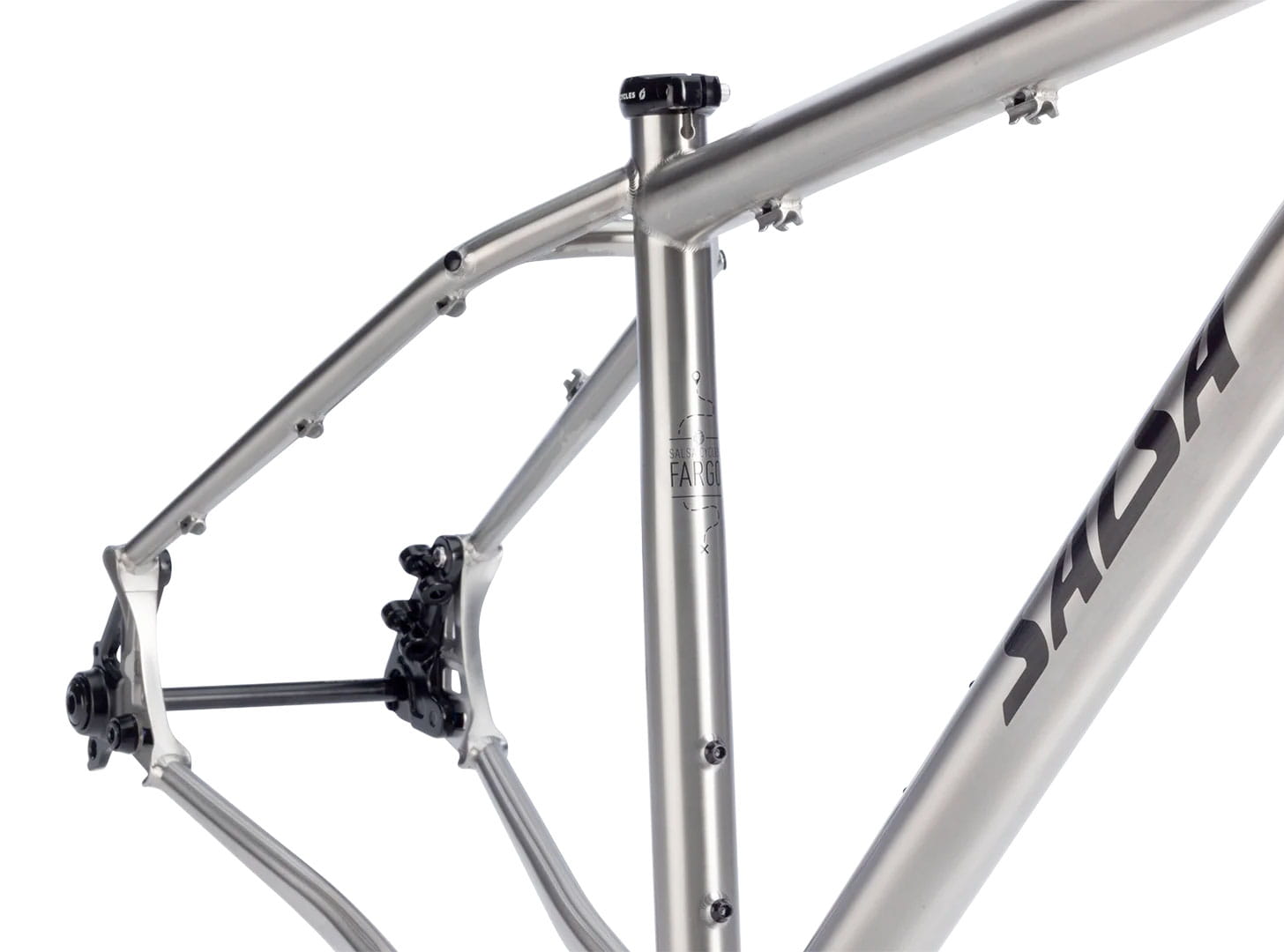

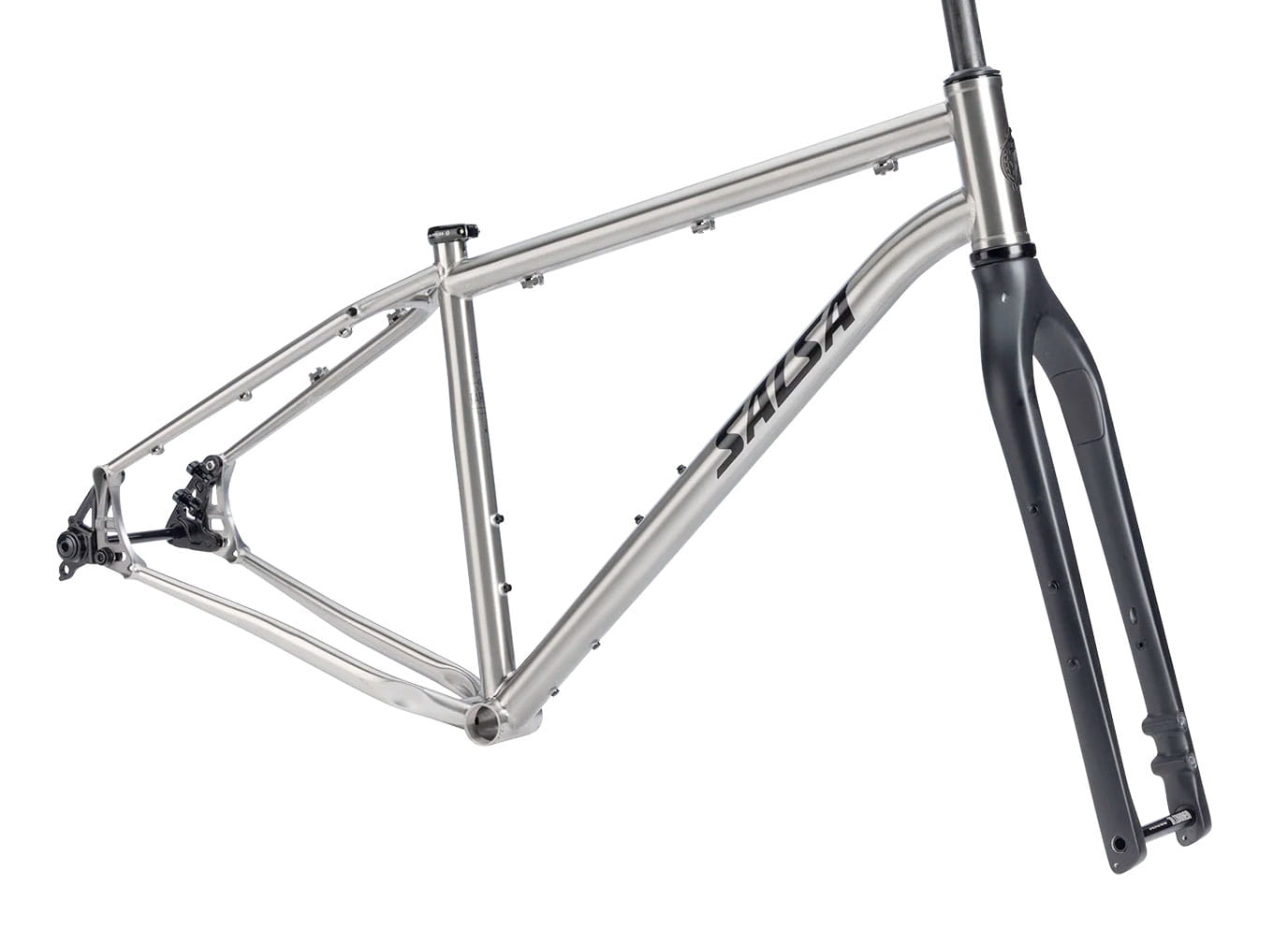

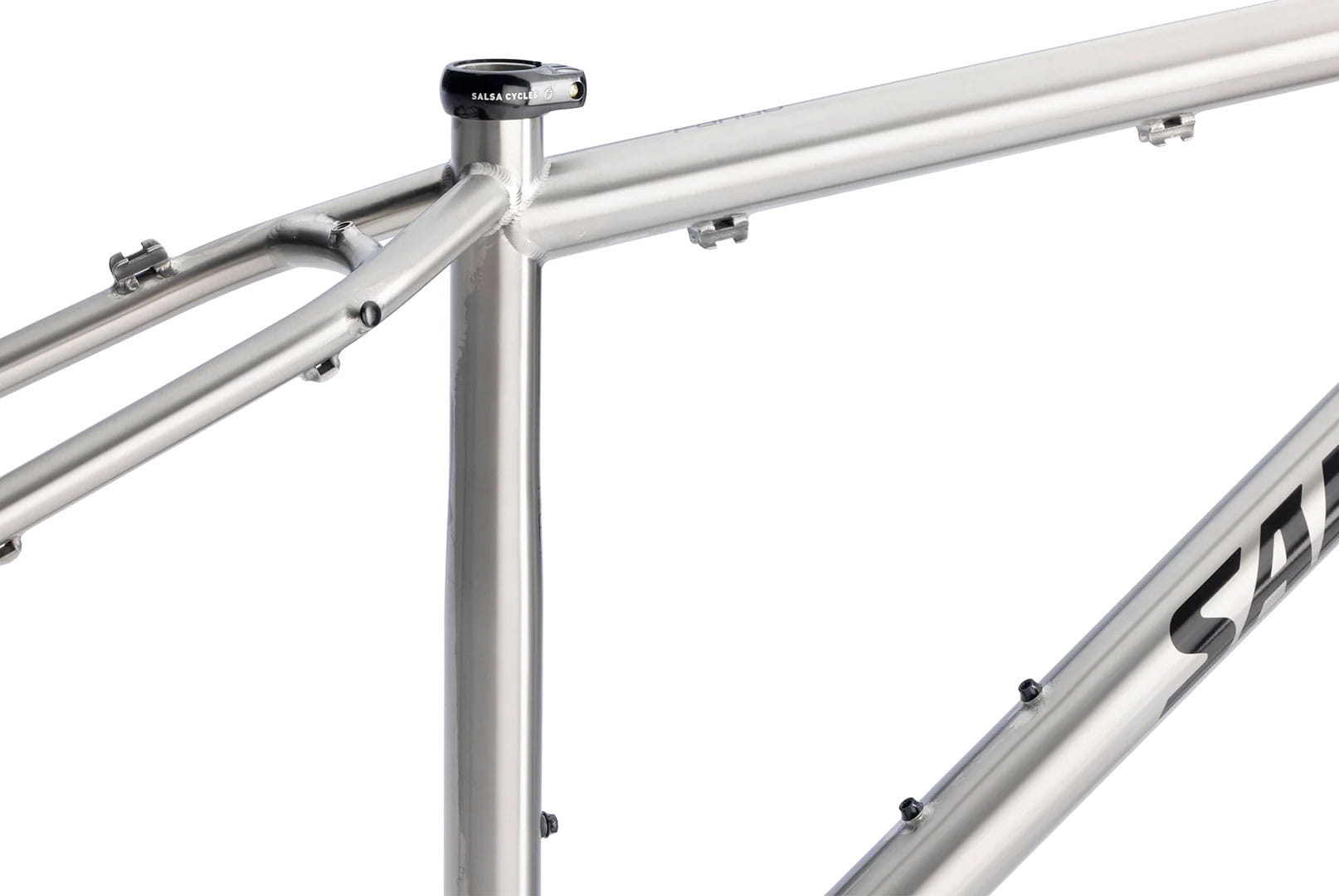

Salsa Fargo Ti Frame Kit – Light, Strong, Unstoppable
The premium titanium version of the Fargo frame set combines the incredible ride quality of titanium with the world of bikepacking.
Product Features:
- Frame for dropbar mountain bikes (using a flat handlebar is also possible) for singletrack, gravel, road
- Seamless titanium frame tubes, double-butted
- Cutthroat Carbon Deluxe carbon fork

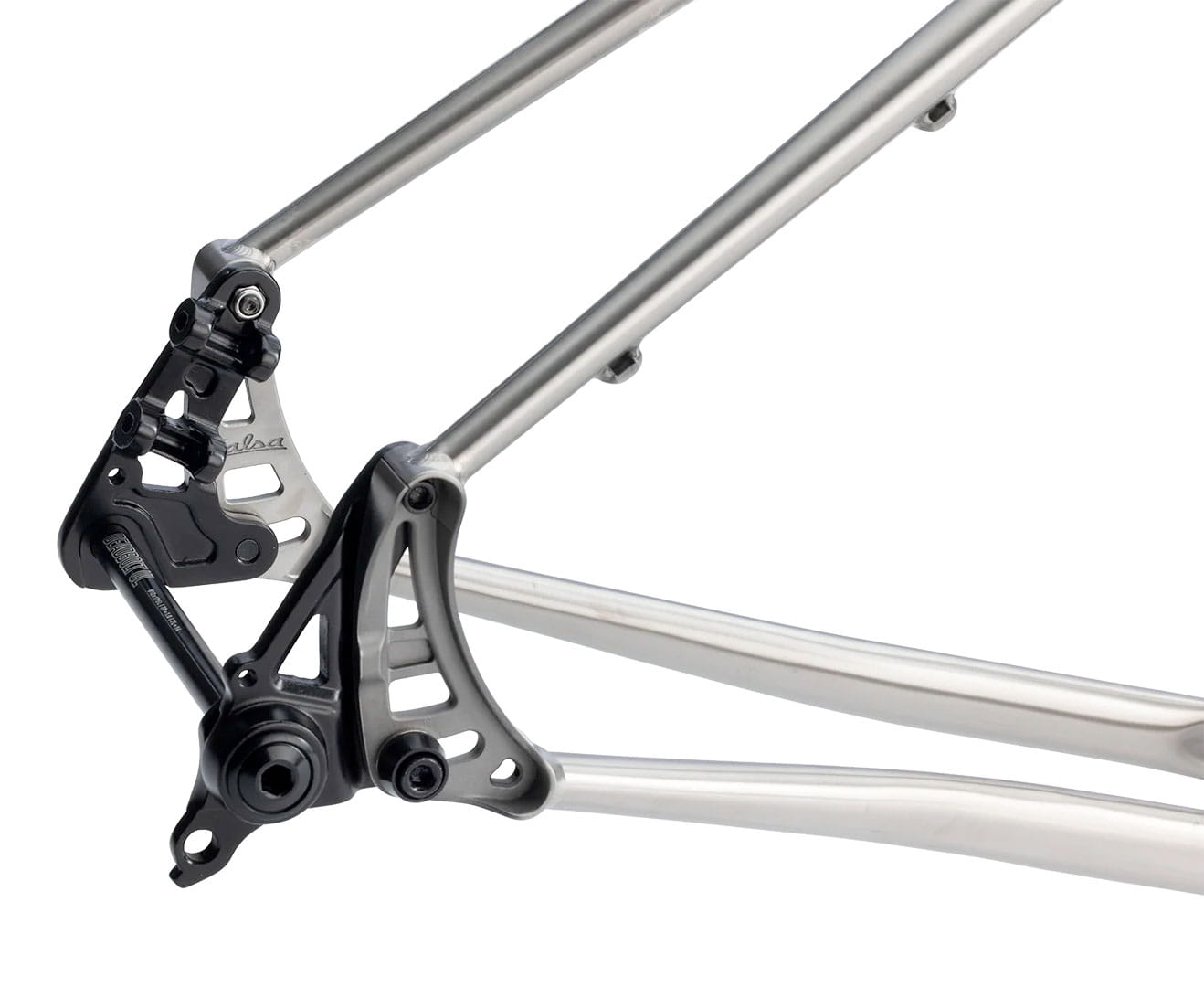

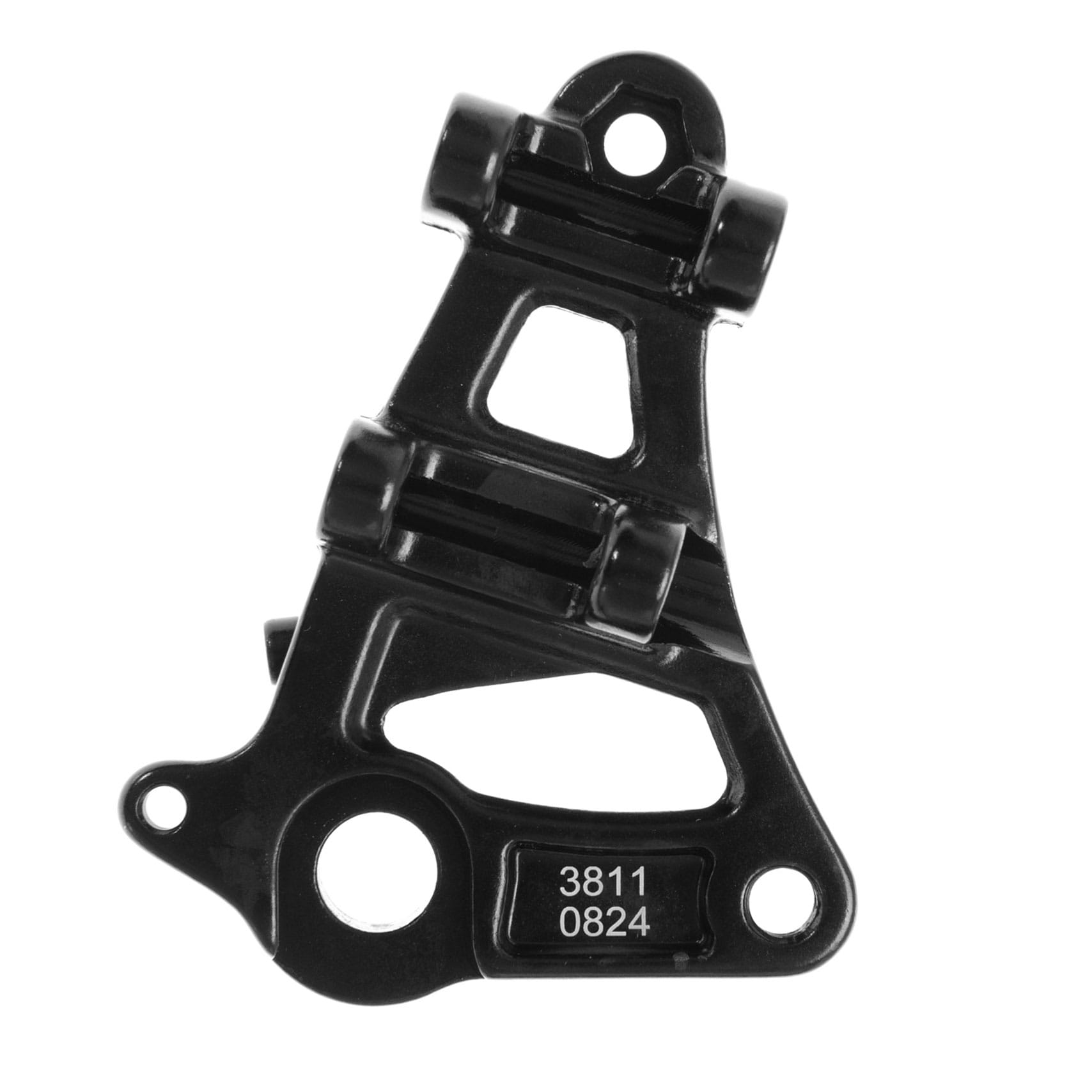

- Alternator 1.0 Flat Mount dropout (left)
- Alternator UDH dropout (right)
- Flat-mount brake mounts front and rear
- Fork with internal routing for a hub dynamo
- Includes FSA Orbit ITA headset
- Mounting points for rear rack
- Fork without fender mounts
Clearances:
- Maximum total weight: 161 kg
- Maximum rotor size: 180 mm (front and rear)
- Tire size (frame):
29" tires: 76 mm (3.0") SM-XL / 66 mm (2.6") XS
27.5" tires: 76 mm (3.0") - Tire size (fork): max. 29 x 2.6"
- Chainring options: 1x, 2x
- Maximum chainring size: 1x 36T Boost, 34T Non-Boost, 46T Gates, 2x 28-42T
- Recommended fork length: 483–486 mm (rigid), 501–511 mm (suspension fork)
Sizes / Manufacturer Numbers:
- S: FM3438
- M: FM3439
- L: FM3440
- XL: FM3441
Technical Data:
- Weight: 2.86 kg (size L)
- Rear hub width: 148 mm
- Axle standard: 12 mm thru-axle
- Seatpost diameter: 27.2 mm
- Seat clamp diameter: 32 mm
- Headset: ZS44 – EC44 (top to bottom)

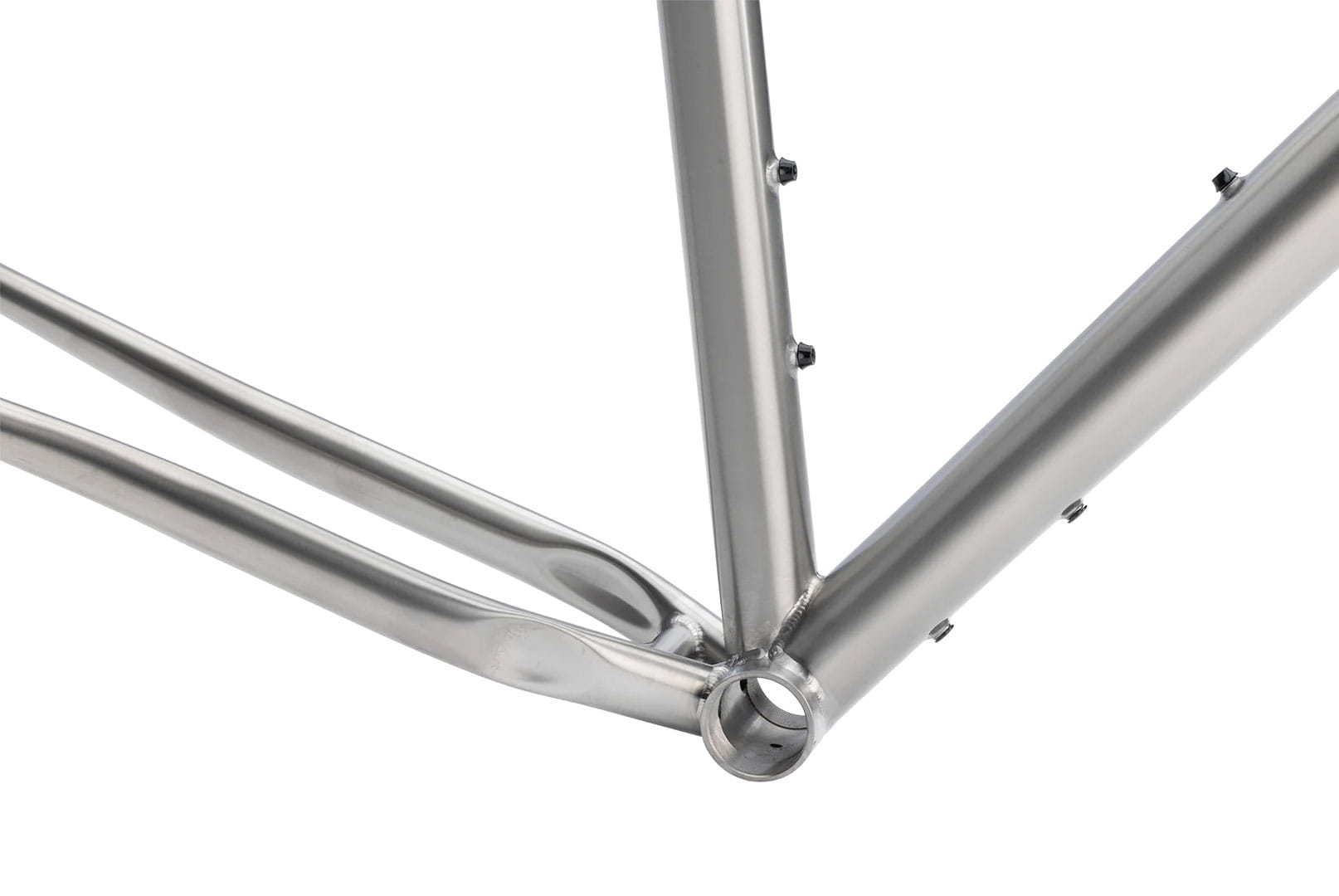

- Bottom bracket standard: BSA
- Bottom bracket shell width: 73 mm
- Belt drive compatible: Yes, opening at dropout
- Front derailleur mount: Direct Mount (High-Direct)
- Brake mount: Flat mount (160–180 mm)
- Bottle cage mounts: 2 (XS), 3 (S–XL)
Fork:
- Steerer tube: 1 1/8" – 1.5" tapered (recommended 1 1/8")
- Axle system: thru-axle (15 x 110 mm)
- Brake mount: Flat mount (160–180 mm)
- Offset: 51 mm
- Axle-to-crown height: 480 mm
- Hub width: 110 mm
- Fork material: carbon
- Recommended travel: 100 mm
- Accessory mounts: Low Rider, bottle cage
Included in Delivery:
- 1 x Salsa Fargo frame
- 1 x Cutthroat Carbon Deluxe rigid fork
- 2 x thru-axles (front + rear)
- 1 x FSA Orbit ITA headset
- 1 x Salsa Lip-Lock seat clamp
- 1 x Salsa fork crown
Geometry:
| Parameter | S | M | L | XL |
|---|---|---|---|---|
| Recommended Rider Height (cm) | 160–175 | 173–183 | 180–191 | 188+ |
| Stack (mm) | 615 | 643 | 671 | 690 |
| Reach (mm) | 364 | 368 | 385 | 409 |
| Seat Tube Length (mm) | 406.4 | 457.2 | 508 | 558.8 |
| Effective Top Tube Length (mm) | 540 | 565 | 590 | 620 |
| Head Tube Length (mm) | 110 | 140 | 170 | 190 |
| Chainstay Length (mm) | 455–462 | 455–462 | 455–462 | 455–462 |
| Wheelbase (mm) | 1067–1084 | 1083–1100 | 1110–1127 | 1141–1158 |
| BB Drop (mm) | 70 | 70 | 70 | 70 |
| Seat Angle (°) | 74 | 73 | 73 | 73 |
| Head Angle (°) | 69 | 69 | 69 | 69 |
| Standover Height (mm) | 732 | 778 | 821 | 859 |
