Designed for FAT Bikes or E-Bikes with up to 5" Tire Width

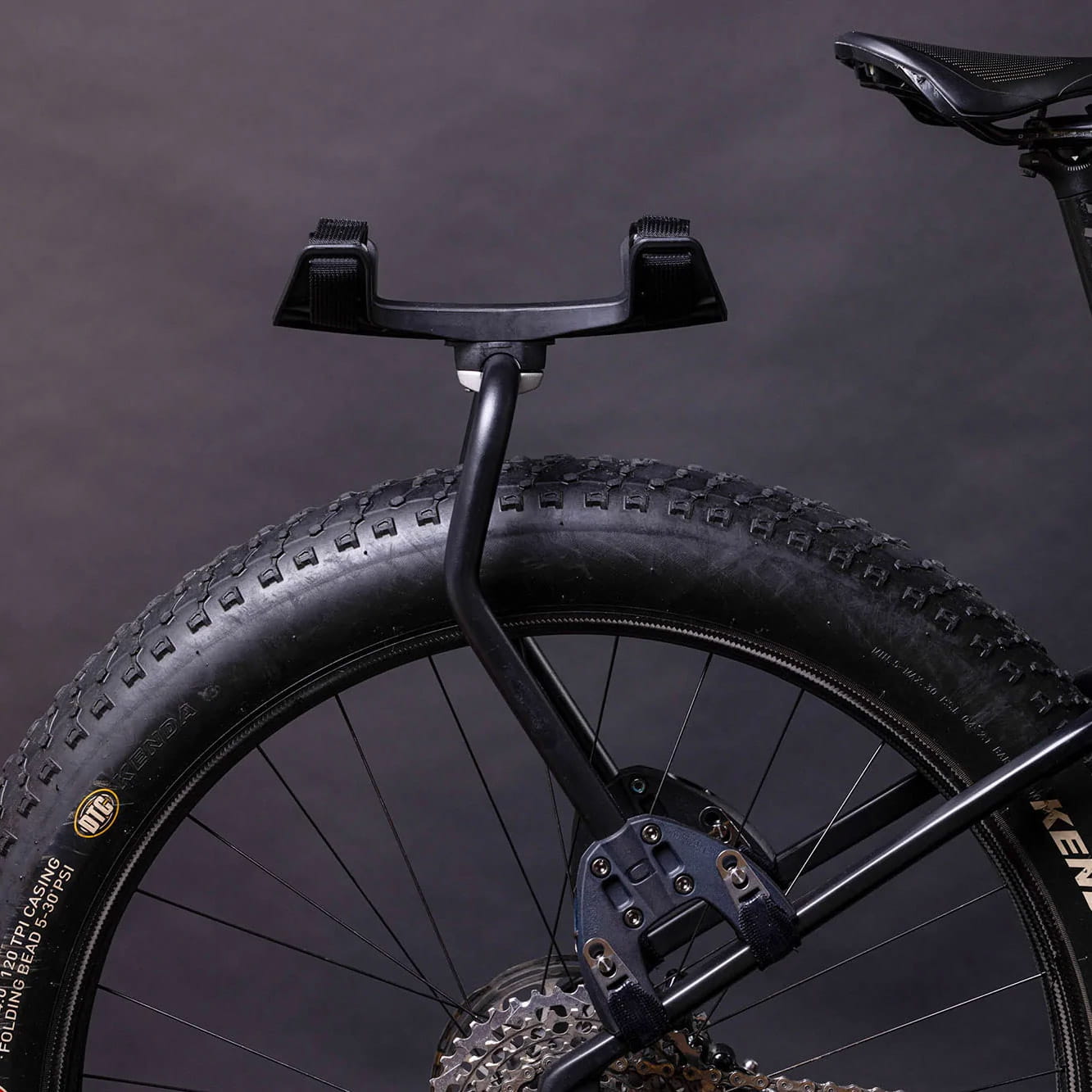

Optimized for flexibility and large cargo capacity, the AEROE Spider FAT Rack is perfect for long bike trips with a fatbike and multi-day e-MTB tours—or simply any outdoor adventure with your bike. The solid frame of the Spider Rear Rack mounts to the rear of your bike and provides space for up to three AEROE Spider mounts (only one mount included). The Spider FAT Rack can also be easily installed on full-suspension frames, whether aluminum or carbon, round or oval tubes. Just as quickly as it’s mounted, it can be removed.
Product Features:
- Sturdy rack with Spider mounting system
- Space for up to 3 Cradle mounts (only one mount included)

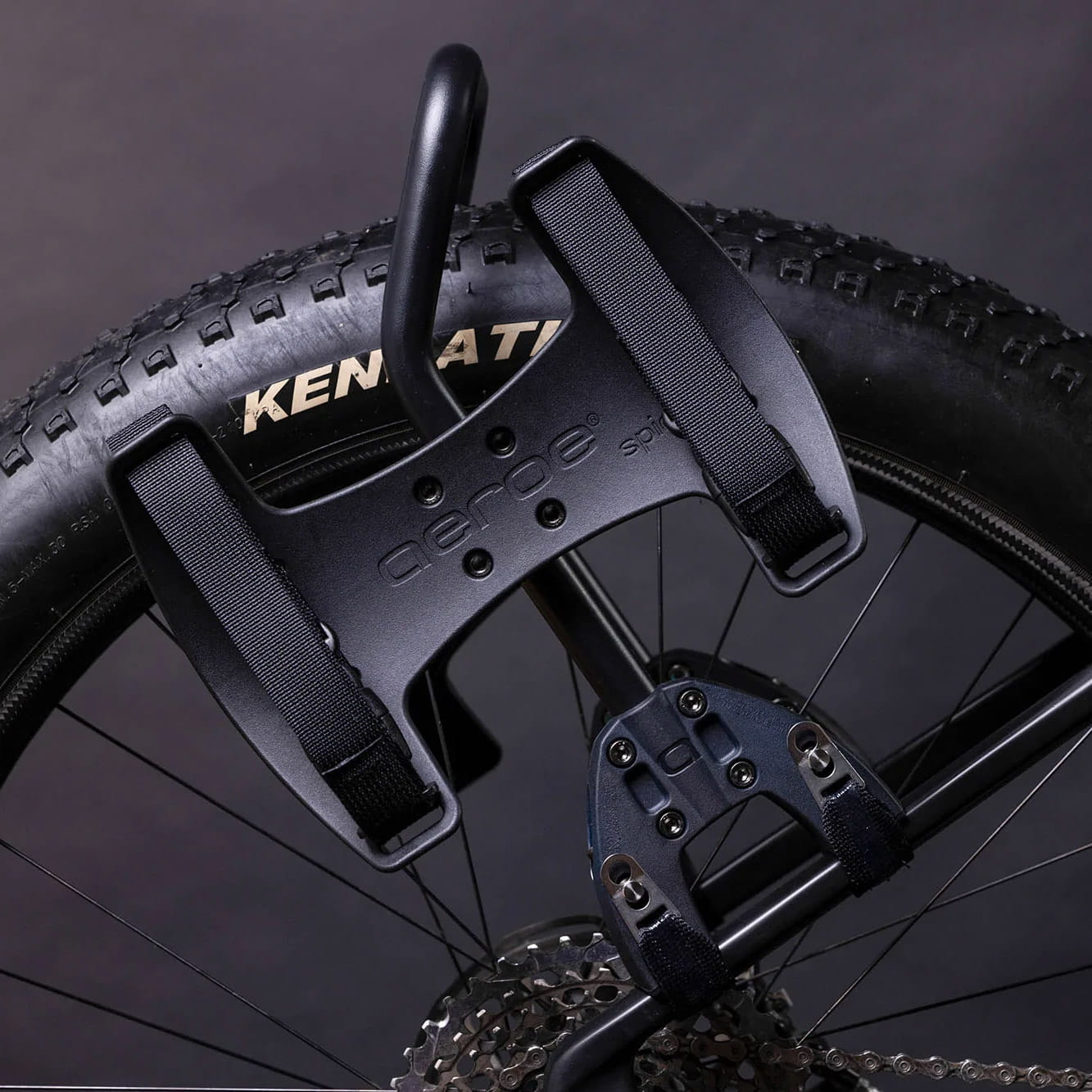

- Cradle cargo mount rotates 90° (horizontal / vertical mounting)
- High-quality materials and craftsmanship (lightweight, impact-resistant, and durable)
- Flexible mounting with adjustable straps on the seat stays (observe max torque!)
- Compatible with Aeroe Heavy Duty Drybags or other cargo items (tent, sleeping bag, etc.)
- Mountable on steel, aluminum, and carbon frames regardless of eyelets (also suitable for oval frame tubes)
Suitable for Carbon Frames?
Yes. We recommend applying 1–2 layers of frame protection tape or insulating tape at contact points. Please follow the weight limits and torque specifications in the Aeroe instructions!

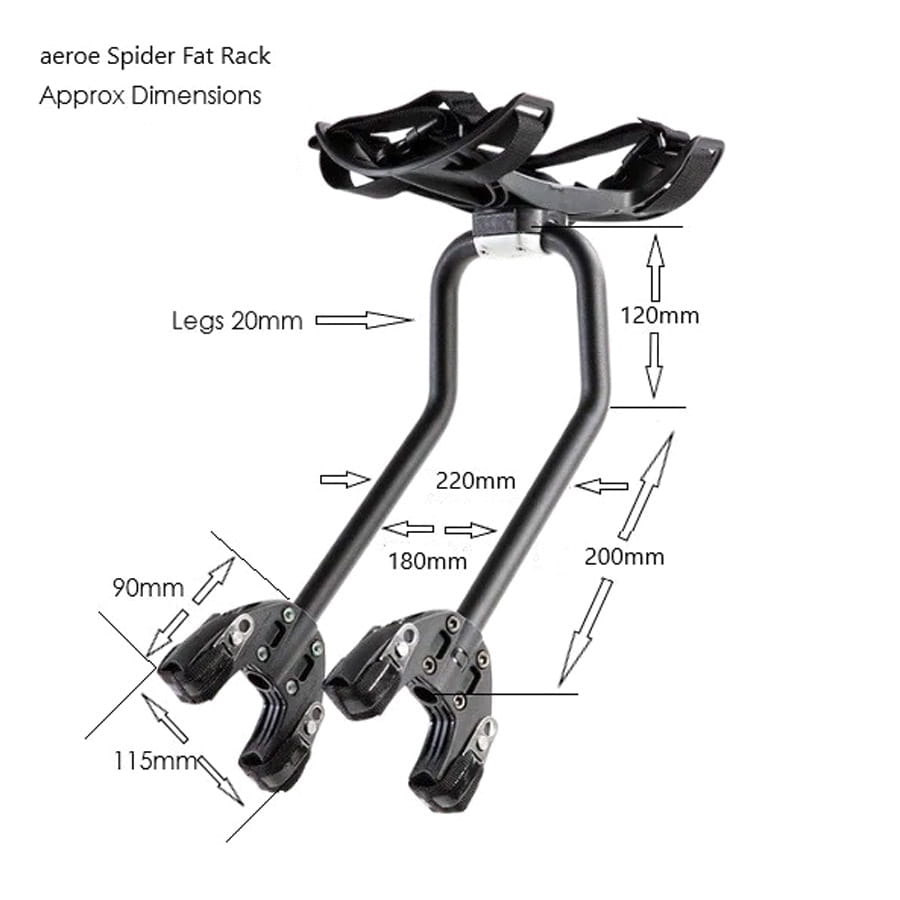

Technical Specifications:
- Mounting: Adjustable strap system with quick-release buckles
- Compatible Tire Sizes: 26"–29" wheels // 3.8"–5" width
- Cradle Mount Dimensions: approx. 250 x 180 mm
- Material: Aluminum 6061 T6, plastic, stainless steel 304, and fiber-reinforced nylon
- Weight: approx. 969 g (rack with 1 cargo mount), 616 g (rack only)
- Load Capacity: max. 5 kg per cargo mount (total max. 15 kg with 3 cargo mounts)
- Max Torque: 4 Nm
Installation Notes:
The Spider FAT Rack is designed to be flexible. The rack legs can be gently pushed apart or squeezed together to fit your seat stay width. The legs can be adjusted up to 20 mm inward or outward (20 mm total, not per leg!).
The feet can also be rotated to facilitate installation on angled seat stays.
By loosening the foot screws, you can rotate the entire Spider Rack 180° to mount your gear further from the saddle.
Package Contents:
- 1 x Aeroe Spider FAT Rack including mounting straps
- 1 x Aeroe Spider Cradle cargo mount
Note: Aeroe Heavy Duty Drybag NOT included!
